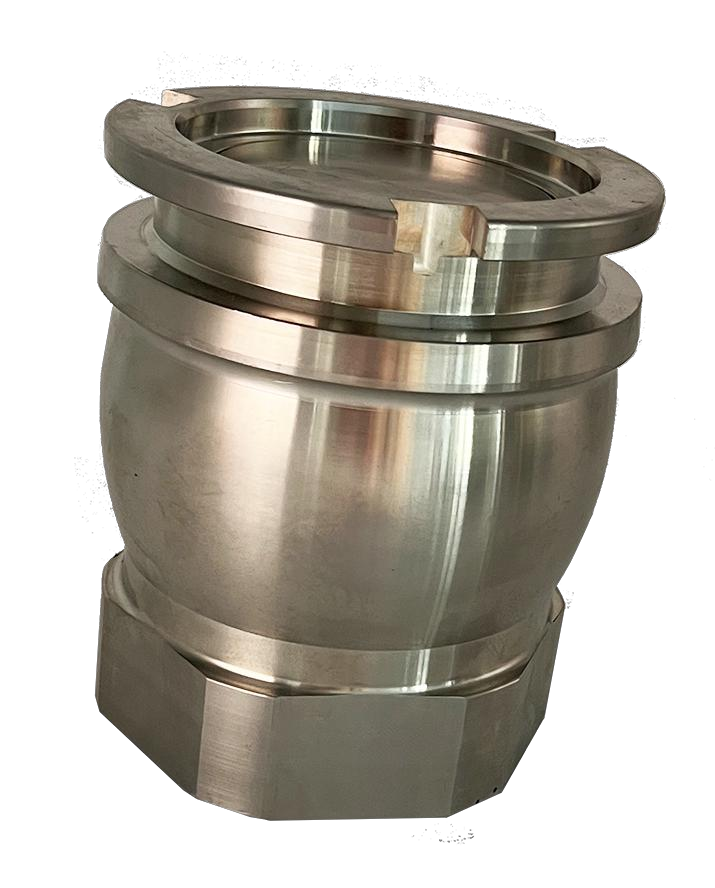

EasyDry® DDA600 Aluminum & Stainless Steel & Brass Adaptor (Tank Unit)

EasyDry DDC series dry disconnect couplings are designed specifically for the quick and spill-free connection and disconnection of hoses and loading arms during the transfer of hazardous or expensive products. These couplings are ideal for situations where it is crucial to prevent spills, as cleaning up, reprocessing, or disposing of such products can be costly. The main features of EasyDry couplings include their ability to provide a secure and efficient connection, ultimately helping to minimize the risk of spills and ensuring a safe and efficient transfer process.

•  Easy to handle - push and turn - free flow, turn and pull - closed

•  Time saving - no need to drain hoses or pipe systems

•  Economical - no loss or spillage of liquids at connection or disconnection

•  Safety - the valve cannot be opened until the unit is coupled

•  Environment friendly - accidental spillage eliminated when properly used

•  Safe and reliable - due to rugged construction

• Product life - uncomplicated design and high quality materials ensures long product life

•  Produced according to NATO standard STANAG 3756

•  Interchanges with other brand which follows  STANAG 3756 standards

Applications

Our products are designed to meet the needs of various industries such as industrial process plants, road and rail tanker operations, ISO container transportation, IBC container handling, pharmaceutical facilities, aviation fuel bunkering, and petrochemical industries. We understand the importance of minimizing spillage in these applications and our solutions are tailored to address this critical requirement. Whether it's for storage, transportation, or handling, our products are designed to help you minimize spillage and ensure operational efficiency.

Specification

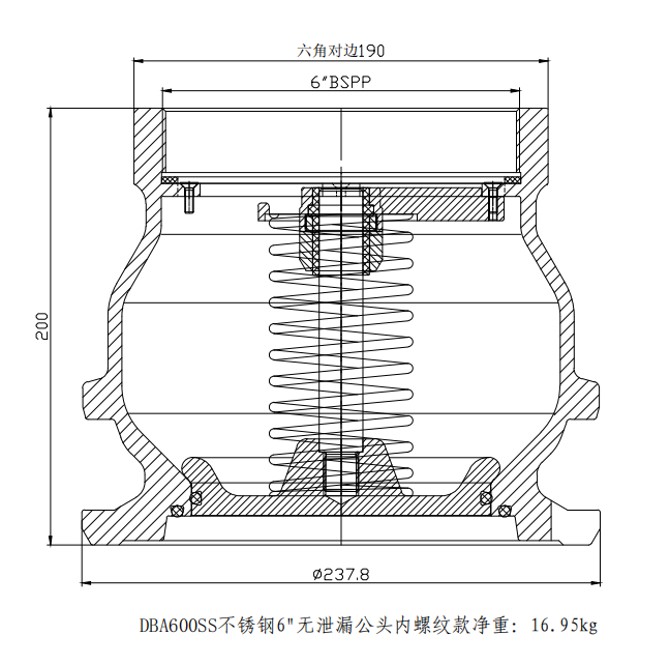

SKU: DDA600 Adaptor (Tank Unit)

Size: 6 in.

Brand: EasyDry

Material: Stainless Steel/Brass/Aluminum

Seal-Material: FKM

Product Type: Bayonet x FBSP

End Connections: 6" in FBSP, FNPT,ASA/EN flange

Product to be handled

Petroleum products: Gasoline, diesel, oil etc.

Chemical products: Ethylene Oxide, Propylene Oxide, Acrylonitrile, Butadiene, Ammonia, Vinyl Chloride, Toluene, Xylene, Sulphuric, Acid, Phenol etc.

 Optional Connections and Seal Material  (consult EasyDry for details)
